Product Show:
| Item | Specification |
| Equipment overall dimensions | 3000*1200*1800 mm |
| Equipment mechanical materials | Stainless steel 304 |
| Voltage | 380 V(Or customized) |
| Power | 2.05 KW |
| Filling volume range | 100-350 g |
| Minimum bottle neck diameters | 50 mm |
| Maximum bottle body diameters | 100 mm |
| Maximum bottle height | 160 mm |
| Filling nozzles | 6 nozzles or customized |
| Productivity | 3000 bph |
| Compressed air pressure | 0.6 Mpa |
| Compressed air consumption | 8 m3/h |
| PLC | Siemens or other brand |

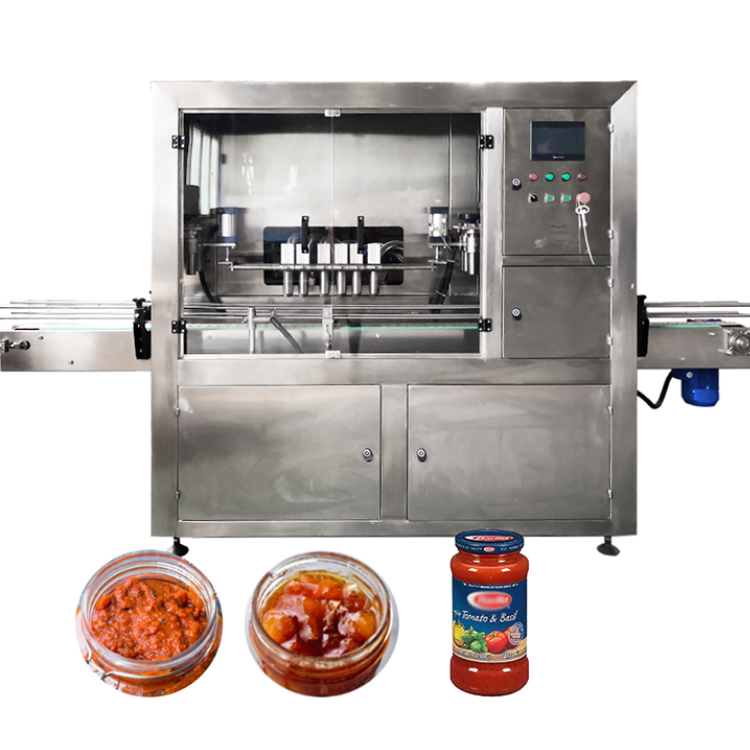

Application:
Main Features:

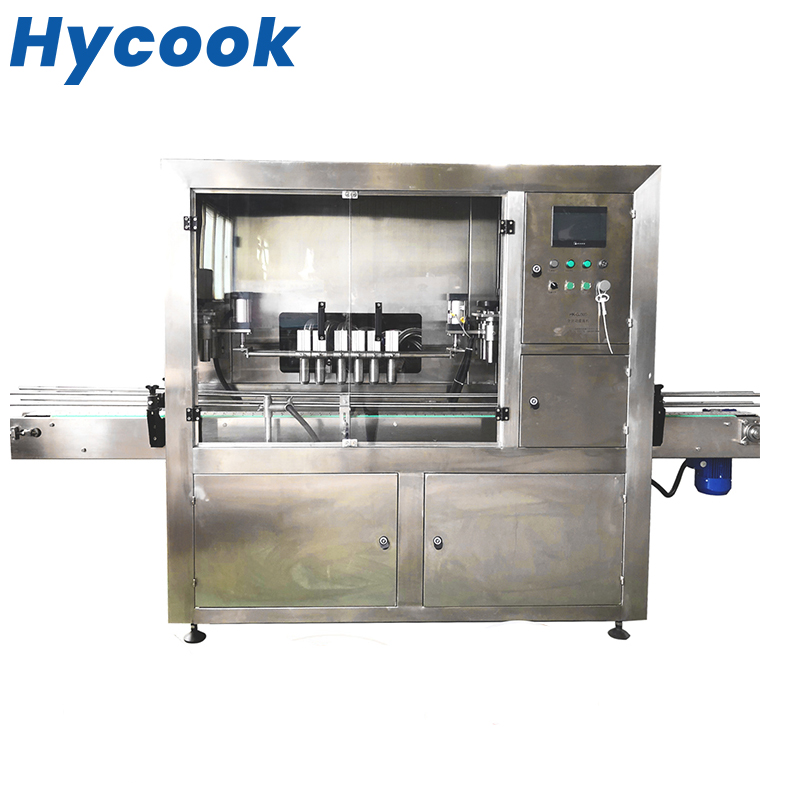

1. The machine body is made of imported stainless steel 304 with elegant appearance. 2. The linear full-automatic filling machine has realized automatic accurate filling, automatic measuring and automatic cleaning, and it has achieved big improvement in China. 3. The filling machine could complete counting and filling bottles automatically, and it is easy to operate and work stably.
